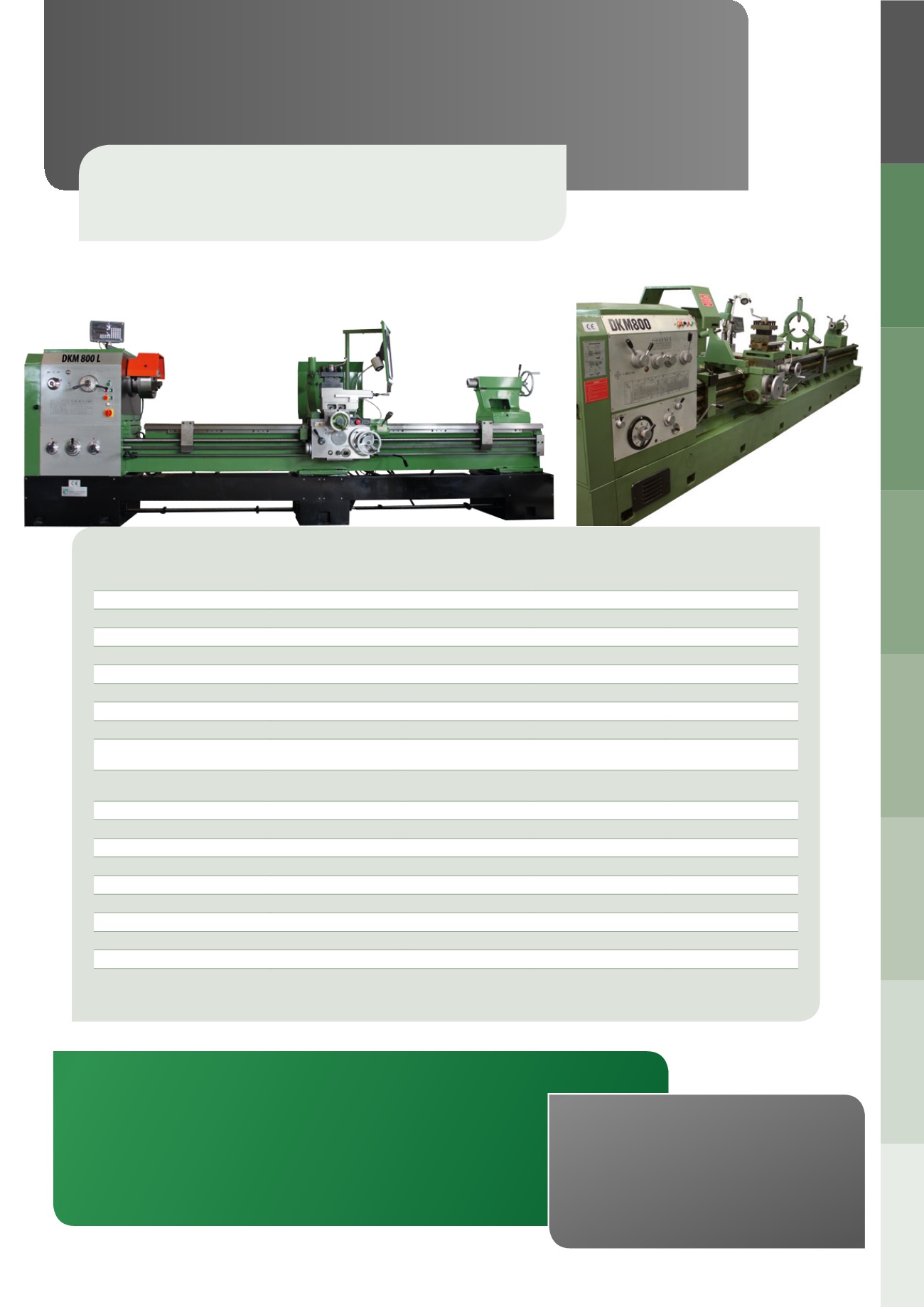

Precision Center Lathe for large turning diameters with high spindle bores.
A fine stepped speed range for optimal machining results.
lathes DKM 800er series
DKM 800B L
DKM 800C L
DKM 800
DKM 800 H
heigth of center
400 mm
400 mm
400 mm
400 mm
distance between center
1500-3000 mm
1500-3000 mm
1500-12000 mm
1000-12000 mm
bed width
500 mm
500 mm
550 mm
600 mm
max. swing over bed
800 mm
800 mm
800 mm
800 mm
max. swing in the gap
1000 mm
1000 mm
965 mm
max. swing over slider
560
560
505 mm
480 mm
diameter of spindlehole
80 mm
103 mm
105 mm
105 mm
spindlenose
DIN 55029 Camlock D1-8 DIN 55029 Camlock D1-8 D1-11 MK6
DIN 55027/KK11
speed range
8 - 1400 U/min (24)
30 - 1400 U/min (12)
14 -900 U/min
Vorw. 5.5 - 750, R
range longitudinal feeds
0,028 - 6,43 mm/U (92
Steps)
0,063 - 2,52 mm/U (65
Steps)
(72) 0,048 - 22,8 mm/U (64) 0,1 - 24.32 mm/U
range cross feeds
0,012 - 2,73 mm/U (92
Steps)
0,027 - 1,07 mm/U (65
Steps)
(72) 0,03 - 7,2 mm/U
(64) 0,05 - 12.16 mm/U
metric thread
0,5 - 224 mm (48 Steps)
1 - 14 mm (22 Steps)
(50) 1 - 240 mm
(50) 1 - 240 mm
inch thread
72 - 1/4 GPZ (48 Steps)
28 - 2 GPZ (24 Steps)
(37) 14 - 1TPI
(26) 14 - 1 TPI
model thread
0,5 - 112 mm (42 Steps)
0,5 - 7 mm (18 Steps)
(45) 0,5 - 60 mm
(53) 0,5 - 120 mm
diametral pitch
56 - 1/4 DP (24 Steps)
56 - 4 DP (24 Steps)
(27) 30 - 1 DP
(24) 28 - 1 DP
quill diameter
90 mm
90 mm
100 mm
100 mm
quill stroke
150 mm
150 mm
205 mm
250 mm
quill konus
Morse Konus 5
Morse Konus 5
Morse Konus 5
Morse Konus 6
power of engine
7,5 kW
7,5 kW
11 kW
11 kW
weight
4000 kg (E.g. 3M)
4000 kg (E.g. 3M)
6000 kg (E.g. 3M)
5210 kg (E.g. 3M)
dimensions
4565x1340x1430mm
(E.g. 3M)
4565x1340x1430mm
(E.g. 3M)
4910 x 1276 x 1240 mm
(E.g. 3M)
5160x1450x1630 (E.g.
3M)
Features
»
»
gear helically toothed, hardend and ground
»
»
adjustable multi-plate clutch and main spindle bearing
»
»
lubrication by integrated pump (nur DKM800L)
»
»
swing lubrication in gear box (nur DKM800/800H)
»
»
hydraulic clutch adjustable (nur DKM800H)
»
»
hydraulic brake system for main spindle (nur DKM800H)
»
»
one-hand-lever-technic for feed (nur DKM800H)
»
»
central lubrication (nur DKM800H)
»
»
rapid feed in longitudinal and cross
»
»
overload clutch in apron
»
»
gap
»
»
manual guideway lubrication
»
»
following splashguard
»
»
cooling device
»
»
3-axis-digital readout
Accessories
»
»
3-jaw chuck 315mm
»
»
4-jaw independent chuck 500mm (nur DKM800L)
»
»
4-jaw independent chuck 400mm (nur DKM800/800H)
»
»
steady and following rest
»
»
splashguard
