heavy duty lathes

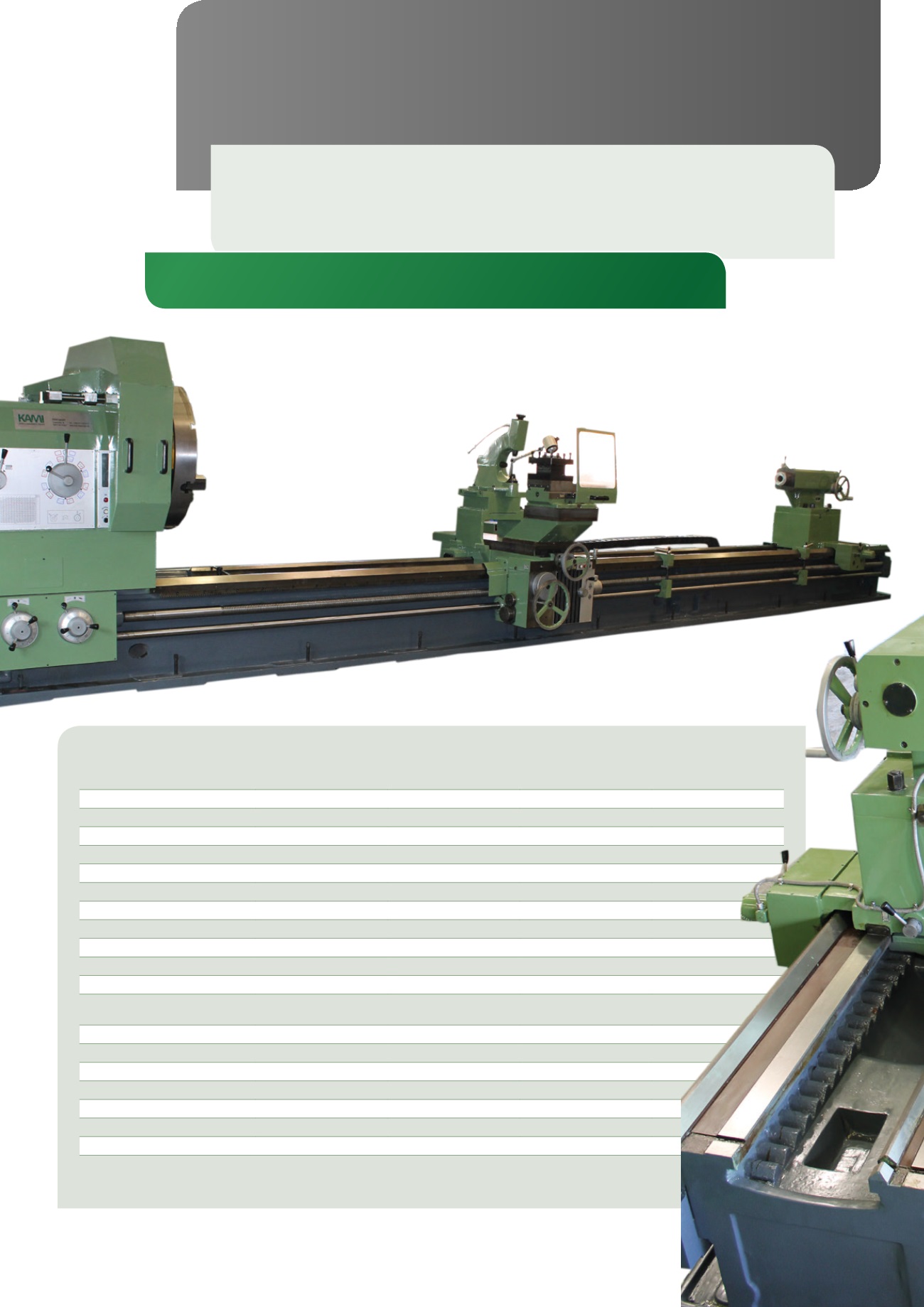

Heavy duty lathes with Russian design with one-piece bed construction and a strong 22/30 kW
engine. The machine is suitable for both, precise and heavy processing. The capability of the
technology was proven in hard usage over many years.
DKM 1600 D
DKM 2000 D
DKM 2200 D
DKM 2400 D
heigth of center
800 mm
1000 mm
1100 mm
1200 mm
distance between center
5000 mm
5000 mm
5000 mm
1500-20000 mm
bed width
755 mm
1100 mm
1100 mm
1100 mm
max. weight of workpiece
6000 kg
8000 / 10000 kg
8000 / 10000 kg
8000 / 10000 kg
max. swing over bed
1600 mm
2000 mm
2200 mm
2400 mm
max. swing over slider
1240 mm
1600 mm
1800 mm
2030 mm
diameter of spindlehole
128 mm
130 mm
140 mm
140 mm
spindlenose
A 215/8xM22
A2-15
A2-15
A2-15
speed range
3.15 - 315 U/min (vorw 2,5 - 250 U/min
2,5 - 250 U/min
2,5 - 250 U/min
range longitudinal feeds
0.1 - 12 mm/U 56 Steps (97) 0,032 - 12 m/U
(97) 0,032 - 12 m/U
(97) 0,032 - 12 m/U
range cross feeds
0.05 - 6 mm/U 56 Steps (97) 0,016 - 6 m/U
(97) 0,016 - 6 m/U
(97) 0,016 - 6 m/U
metric thread
1 - 120 mm/ 44 Steps
(45) 1 - 120 mm
(45) 1 - 120 mm
(45) 1 - 120 mm
inch thread
28 - 1/4 GPZ
(31 Steps)
(42) 1/4 - 30 GPZ
(42) 1/4 - 30 GPZ
(42) 1/4 - 30 GPZ
model thread
0.5 - 60 mm;45 Steps
(46) 0,5 - 60 mm
(46) 0,5 - 60 mm
(46) 0,5 - 60 mm
diametral pitch
1/2 - 56 DP;38 Steps
(48) 0,5 - 60 DP
(48) 0,5 - 60 DP
(48) 0,5 - 60 DP
quill diameter
160 mm
240 mm
240 mm
240 mm
quill stroke
300 mm
300 mm
300 mm
300 mm
quill konus
Morse Konus 6
80/1:7
80/ 1 zu 7
80/ 1 zu 7
power of engine
22 kW
30 kW
22 kW/ AC
22 kW/ AC
weight
15900 kg (E.g. 5M)
26600 kg (E.g. 5M)
30400 kg (E.g. 5M)
34400 kg (E.g. 5M)
dimensions
8100 x 2150 x 2150 mm
(E.g. 5M)
8620 x 2380 x 2510 mm
(E.g. 5M)
9920 x 2480 x 2610 mm
(E.g. 5M)
9920 x 2580 x 2710 mm
(E.g. 5M)
Heavy duty lathes with a bedwidth from 755 to 1100 mm
