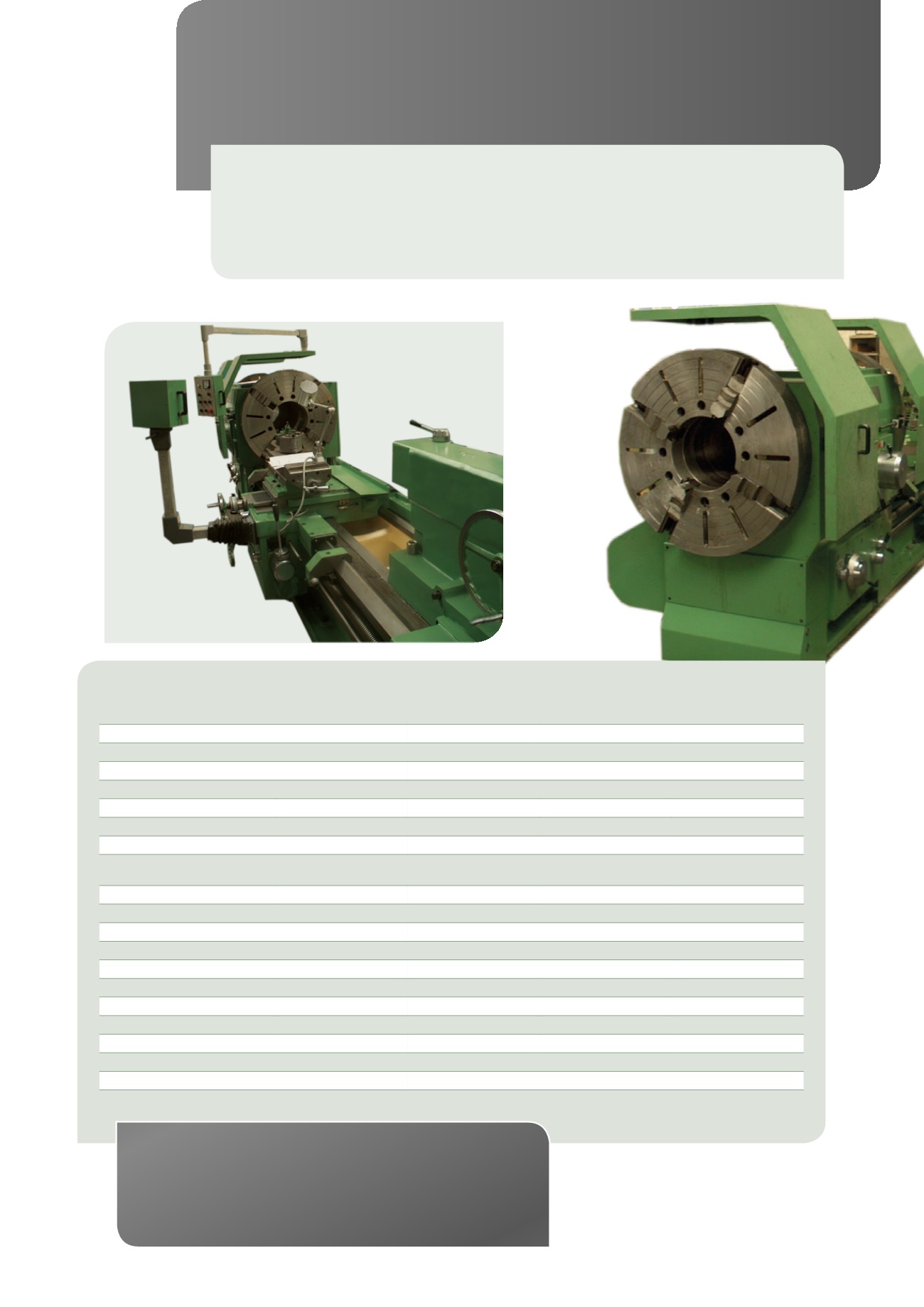

tube cut lathe
Heavy Lathe with a very large spindle bore. The machine is able to cut conical threads through
a taper attachment. This machine series is used worldwide under the toughest conditions in the
petroleum industry for processing drill pipes.
DKM 840 T
DKM 1000 T
DKM 1200 T
DKM 1400 T
heigth of center
420 mm
500 mm
600 mm
700 mm
distance between center
ab 1500 mm
ab 2000 mm
ab 2000 mm
ab 2000 mm
bed width
550 mm
755 mm
diameter of spindlehole
210 mm
355 mm
455 mm
630 mm
spindlenose
DIN 55029 C1-15
max. swing over bed
840 mm
1000 mm
1200 mm
1400 mm
max. swing over slider
560 mm
640 mm
800mm
1100mm
machining length
1350 mm
1800 mm
speed range
45 - 572 U/min
(12 Steps)
6.3 - 315 U/min
(18 Steps)
6.3 - 315 U/min
(18 Steps)
5 - 250 U/min
range longitudinal feeds
(32) 0,1 - 1.5 mm/U
(56) 0,1 - 12 mm/U
(56) 0,1 - 12 mm/U
(56) 0,1 - 12 mm/U
range cross feeds
(32) 0,05 - 0.75 mm/U (56) 0,05 - 6 mm/U
(56) 0,05 - 6 mm/U
(56) 0,05 - 6 mm/U
metric thread
(22) 1 - 15 mm
(44) 1 - 120 mm
(44) 1 - 120 mm
(44) 1 - 120 mm
inch thread
(28) 15 - 1 TPI
(31) 28 - 1/4 TPI
(31) 28 - 1/4 TPI
30 - 11 TPI
model thread
(21) 0,5 - 7 mm
(45) 0,5 - 60 mm
(45) 0,5 - 60 mm
0,5 - 60 mm
diametral pitch
(20) 28 - 2 DP
(37) 60 - 1/2 DP
(37) 60 - 1/2 DP
60 - 1/2 DP
quill diameter
100 mm
160 mm
160 mm
quill stroke
300 mm
300 mm
300 mm
quill konus
MK 6
Metric 80
Metric 80
power of engine
9/11 kW
22 kW
30 kW
30 kW
weight
4300 kg (E.g. 1,5m)
11000 kg (E.g. 2m)
11000 kg (E.g. 2m)
11000 kg (E.g. 2m)
dimensions
3515x1395x1650 mm
(E.g. 1,5m)
5200 x 1980 x 1790 mm
(E.g. 2m)
5200 x 1980 x 1790 mm
(E.g. 2m)
5200 x 1980 x 1790 mm
(E.g. 2m)
Accessories
»
»
4-jaw independent chucknfutter 800mm (DKM 1000/1200/1400)
»
»
4-jaw independent chucknfutter 630 mm (DKM 840)
»
»
steady and following rest
