Heavy Lathe with clutch and a finely graded speed range. The diagonally
toothed gear wheels and the heavy, continuous, low torsion machine bed
ensures minimal vibrations and a low-noise operation. Simple feed direction changes by
hand lever technique.

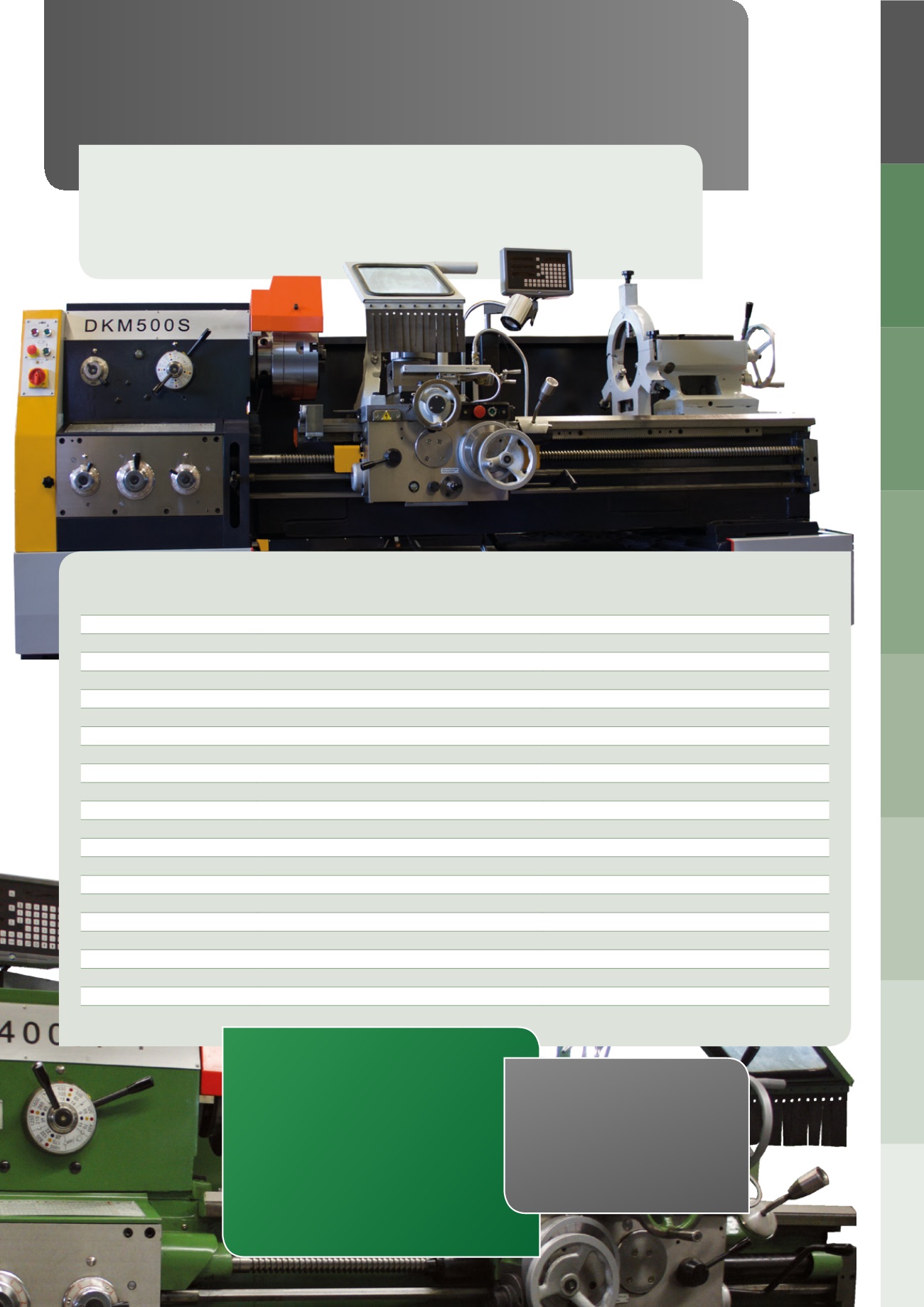

lathes DKM400 S / 500 S
DKM 400 S
DKM 500 S
heigth of center
200 mm
250 mm
distance between center
750-3000 mm
1000-3000 mm
max. swing over bed
400 mm
500 mm
max. swing in the gap
-
710 mm
max. swing over slider
220 mm
300 mm
diameter of spindlehole
52 mm
82 mm
spindlenose
Bajonett DIN 55027 KK6
ISO 702/II Nr. 8 Camlock
speed range
9-1600 U/min (24 Steps)
9 - 1600 U/min (24 Steps)
range longitudinal feeds
0,028 - 6,43 mm/U; 93 Steps
0,028 - 6,43 mm/U; 93 Steps
range cross feeds
0,012 - 2,73 mm/U; 93 Steps
0,012 - 2,73 mm/U; 93 Steps
metric thread
0,5 - 224; 48 Steps
0,5 - 224 mm; 48 Steps
inch thread
72 - 1/8 tpi; 46 Steps
72 - 1/8 GPZ; 49 Steps
model thread
0,5 - 112; 42 Steps
0,5 - 112 mm; 42 Steps
diametral pitch
56 - 1/4 DP; 42 Steps
56 - 1/4 DP; 42 Steps
quill diameter
75 mm
75 mm
quill stroke
150 mm
150 mm
quill konus
Morse Konus 5
Morse Konus 5
power of engine
7,5 kW
7,5 kW
distance between center 750mm
Gewicht 1975 kg, Abmessungen 2382 x 975 x 1230 mm
distance between center 1000mm
Gewicht 2100 kg, Abmessungen: 2672 x 975 x 1230 mm Gewicht 2150 kg, Abmessungen 2632 x 975 x 1270 mm
distance between center 1500mm
Gewicht 2450 kg, Abmessungen: 3172 x 975 x 1230 mm Gewicht 2750 kg, Abmessungen 3132 x 975 x 1270 mm
distance between center 2000mm
Gewicht 2950 kg, Abmessungen 3632 x 975 x 1270 mm
distance between center 3000mm
Gewicht 3450 kg, Abmessungen 4632 x 975 x 1270 mm
Features
»
»
gear helically toothed, hardend and ground
»
»
headstock lubrication by integrated pump
»
»
mechanical spindle break
»
»
multi-plate clutch adjustable
»
»
manual guideway central lubrication
»
»
adjustable main spindle bearing
»
»
rapid feed in longitudinal and cross
»
»
overload clutch in apron
»
»
cooling device
»
»
3-axis-digital readout
Accessories
»
»
3-jaw chuck 250mm
»
»
4 jaw independent chuck400 mm
»
»
following and steady rest
»
»
splash guard
»
»
micrometer stop block
Abbildungen können abweichen.Technische Daten können ohne vorherige Ankündigung geändert werden. Keine Haftung für Irrtümer und Druckfehler.Alle Preise on request.
