lathes DKM 660er series

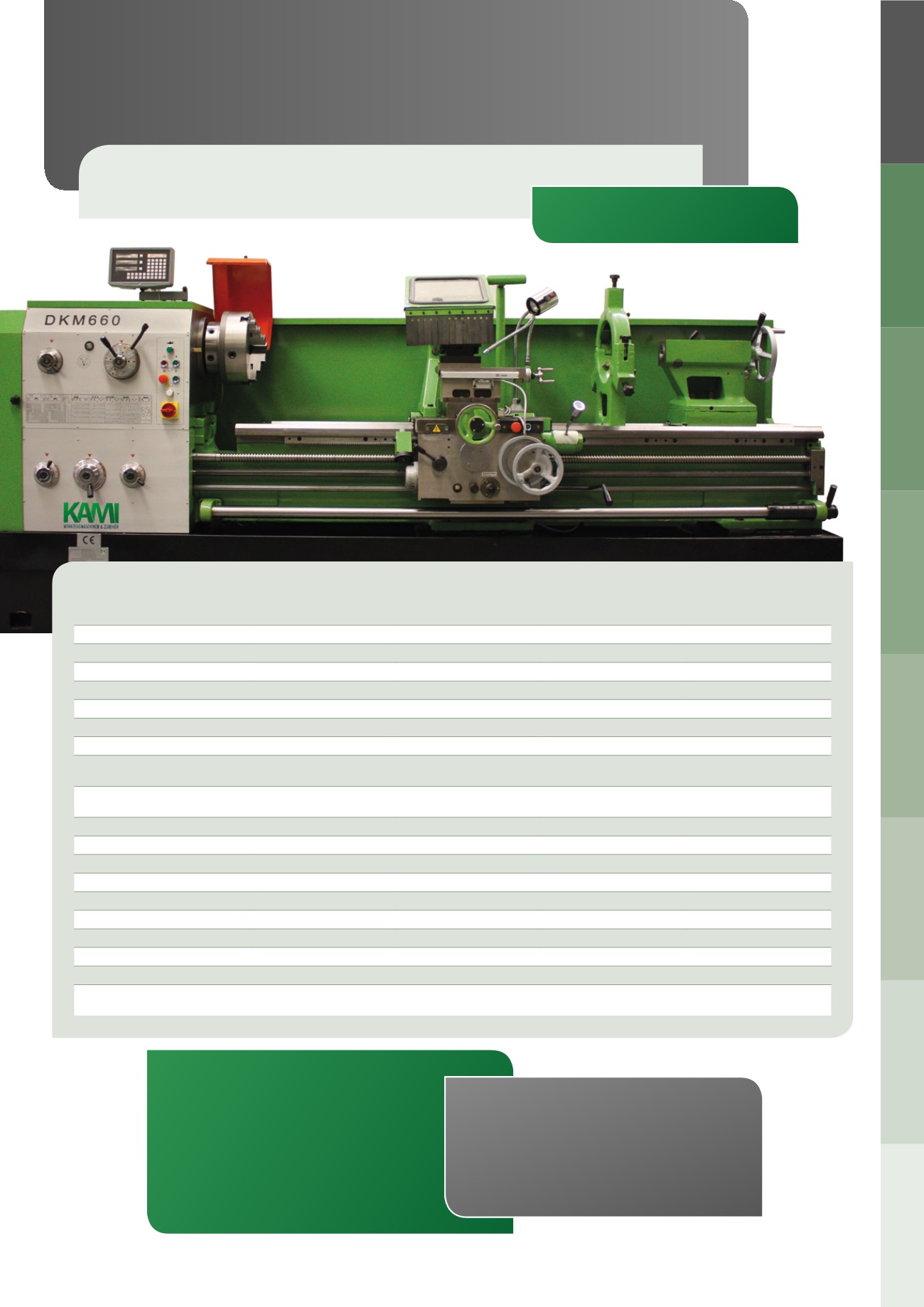

Precision Center Lathe for large turning diameters.
DKM 660 B I
DKM 660 C I
DKM 660 B II
DKM 660 C II
heigth of center
330 mm
330 mm
330 mm
330 mm
distance between center
1000-3000 mm
1500-3000 mm
4000 mm
4000-5000 mm
max. swing over bed
660 mm
660 mm
660 mm
660 mm
max. swing in the gap
840 mm
840 mm
-
-
max. swing over slider
420
420
350 mm
420
diameter of spindlehole
80 mm
103 mm
82 mm
103 mm
speed range
9-1600 U/min (24 Steps)
36 - 1600 U/min (12 Steps)
9 - 1600 U/min 24 Steps
36 - 1600 U/min (12 Steps)
spindlenose
ISO 702/II Nr. 8 Camlock
ISO 702/II Nr. 8
Camlock D1-8
ISO 702/II Nr. 8
range longitudinal feeds
0,028 - 6,43 mm/U (93
Steps)
0,063 - 2,52 mm/U (65
Steps)
0,028 - 6,43 mm/U (92
Steps)
0,063 - 2,52 mm/U
range cross feeds
0,012 - 2,73 mm/U
(93 Steps)
0,027 - 1,07 mm/U
(65 Steps)
0,012 - 2,73 mm/U (92
Steps)
0,027 - 1,07 mm/U
metric thread
0,5 - 224 mm (48 Steps)
1 - 14 mm (22 Steps)
0,5 - 224 mm
1 - 14 mm
inch thread
72 - 1/8 GPZ (49 Steps)
28 - 2 GPZ (25 Steps)
72 - 1/8 GPZ
28 - 2 GPZ
model thread
0,5 - 112 mm (42 Steps)
0,5 - 7 mm (18 Steps)
0,5 - 112 mm (42 Steps)
0,5 - 7 mm
diametral pitch
56 - 1/4 DP
56 - 4 DP (24 Steps)
56 - 112 mm (45 Steps)
56 - 4 DP
quill diameter
75 mm
75 mm
75 mm
75 mm
quill stroke
150 mm
150 mm
150 mm
150 mm
quill konus
Morse Konus 5
Morse Konus 5
Morse Konus 5
Morse Konus 5
power of engine
7,5 kW
7,5 kW
11 kW
11 kW
weight
3300 kg (E.g. 3M)
3300 kg (E.g. 3M)
3680 kg (E.g. 4M)
3680 kg (E.g. 4M)
dimensions
4635 x 1050 x 1450 mm
(E.g. 3M)
4635 x 1050 x 1450 mm
(E.g. 3M)
5625 x 1235 x 1380 mm
(E.g. 4M)
5625 x 1235 x 1380 mm
(E.g. 4M)
Features
»
»
gear helically toothed, hardend and ground
»
»
multi-plate clutch adjustable
»
»
lubrication by integrated pump
»
»
rapid feed in longitudinal and cross
»
»
overload clutch in apron
»
»
cooling device
»
»
3-axis-digital readout
Accessories
»
»
3-jaw chuck 315mm
»
»
4-jaw independent chuck 400mm
»
»
steady and following rest splash guard (nur DKM 660 I)
»
»
following splashguard (nur DKM660
spindle bore 80/103 selectable
