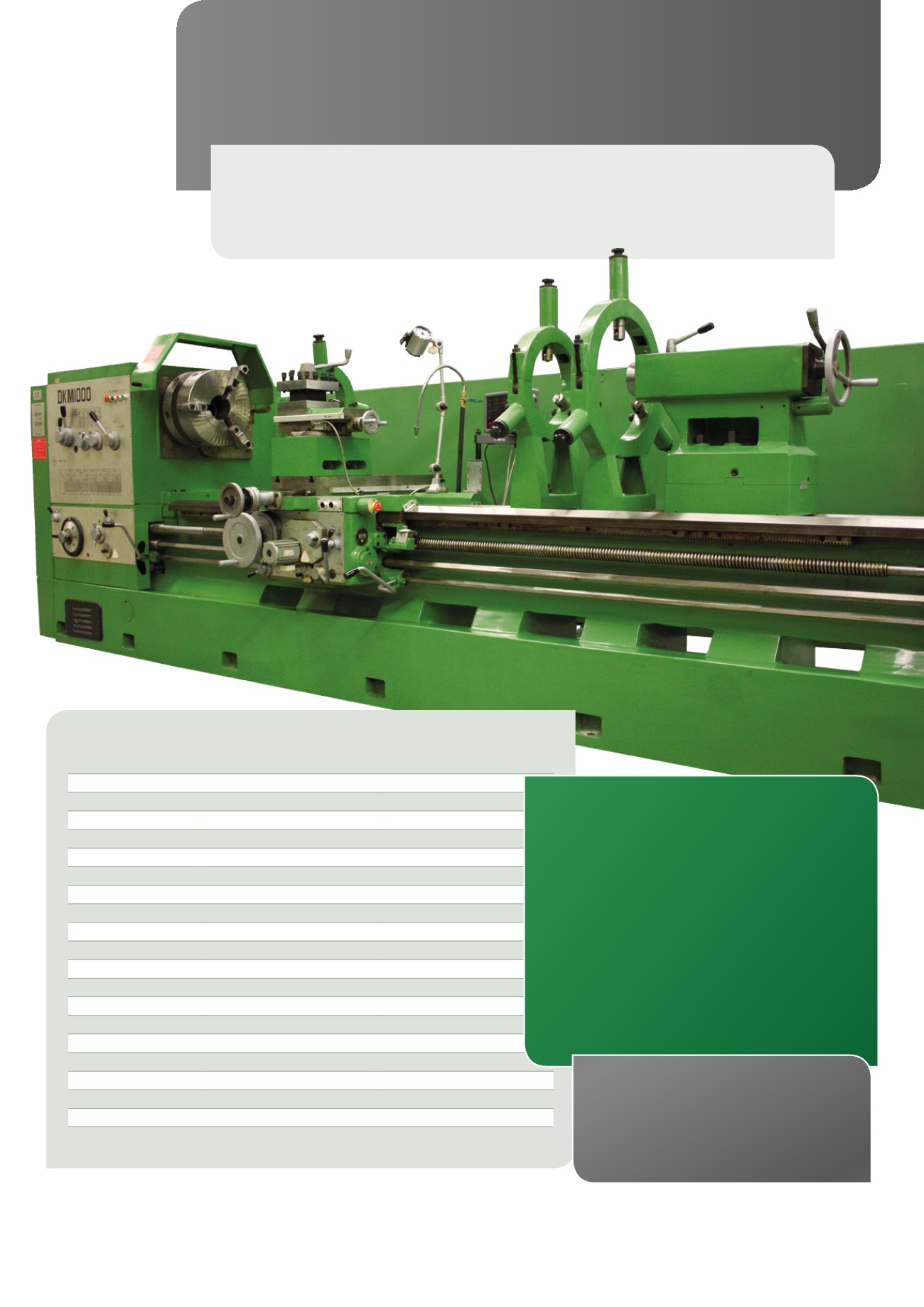

Heavy Lathe with 130 mm spindle bore. Ideal for roughing and finishing tasks at high turning-di-
ameters. The universal machine bed is of a reinforced construction and ensures high torsional
rigidity while processing large workpiece lengthes.
lathes DKM 1000er series
DKM 1000
DKM 1000 H
heigth of center
500 mm
500 mm
distance between center
1500-12000 mm
1500-14000 mm
bed width
550 mm
600 mm
max. swing over bed
1000 mm
1000 mm
max. swing in the gap
1240 mm
1240 mm
max. swing over slider
705 mm
680 mm
diameter of spindlehole
120 mm
120 mm
spindlenose
Camlock D1-15/MK6
Camlock D1-15/MK6
speed range
18 Steps 14 - 750 U/min (r
18 Steps 7 - 720 U/min
range longitudinal feeds
(72) 0,048 - 22,8 mm/U
(72) 0,1 - 24,3 mm/U
range cross feeds
(72) 0,03 - 7,2 mm/U
(72) 0,05 - 12,15 mm/U
metric thread
(50) 1 - 240 mm
(52) 1 - 240 mm
inch thread
(37) 14 - 1TPI
(26) 14 - 1TPI
model thread
(45) 0,5 - 60 mm
(53) 0,5 - 120 mm
diametral pitch
(27) 30 - 1 DP
(24) 28 - 1 DP
quill diameter
120 mm
120 mm
quill stroke
205 mm
240 mm
quill konus
Morse Konus 6
Morse Konus 6
power of engine
11 kW
11 kW
weight
6200 kg (E.g. 3M)
6700 kg (E.g. 3M)
dimensions
5400 x 1820 x 1800 mm (E.g. 3M)
5400 x 1170 x 1250 mm (E.g. 3M)
Features
»
»
hydraulic clutch adjustable (nur DKM1000H)
»
»
hydraulic brake system for main spindle (nur DKM1000H)
»
»
one-hand-lever-technic for feed (nur DKM1000H)
»
»
central lubrication (nur DKM1000H)
»
»
swing lubrication in gear box (nur DKM1000)
»
»
gears hardend and ground
»
»
manual guideway lubrication
»
»
adjustable main spindle bearing
»
»
gap
»
»
rapid feed in longitudinal and cross
»
»
following splashguard
»
»
overload clutch in apron
»
»
cooling device
»
»
3-axis digital readout
Accessories
»
»
3-jaw chuck 400 mm
»
»
4-jaw independent chuck 500mm
»
»
steady and following rest
