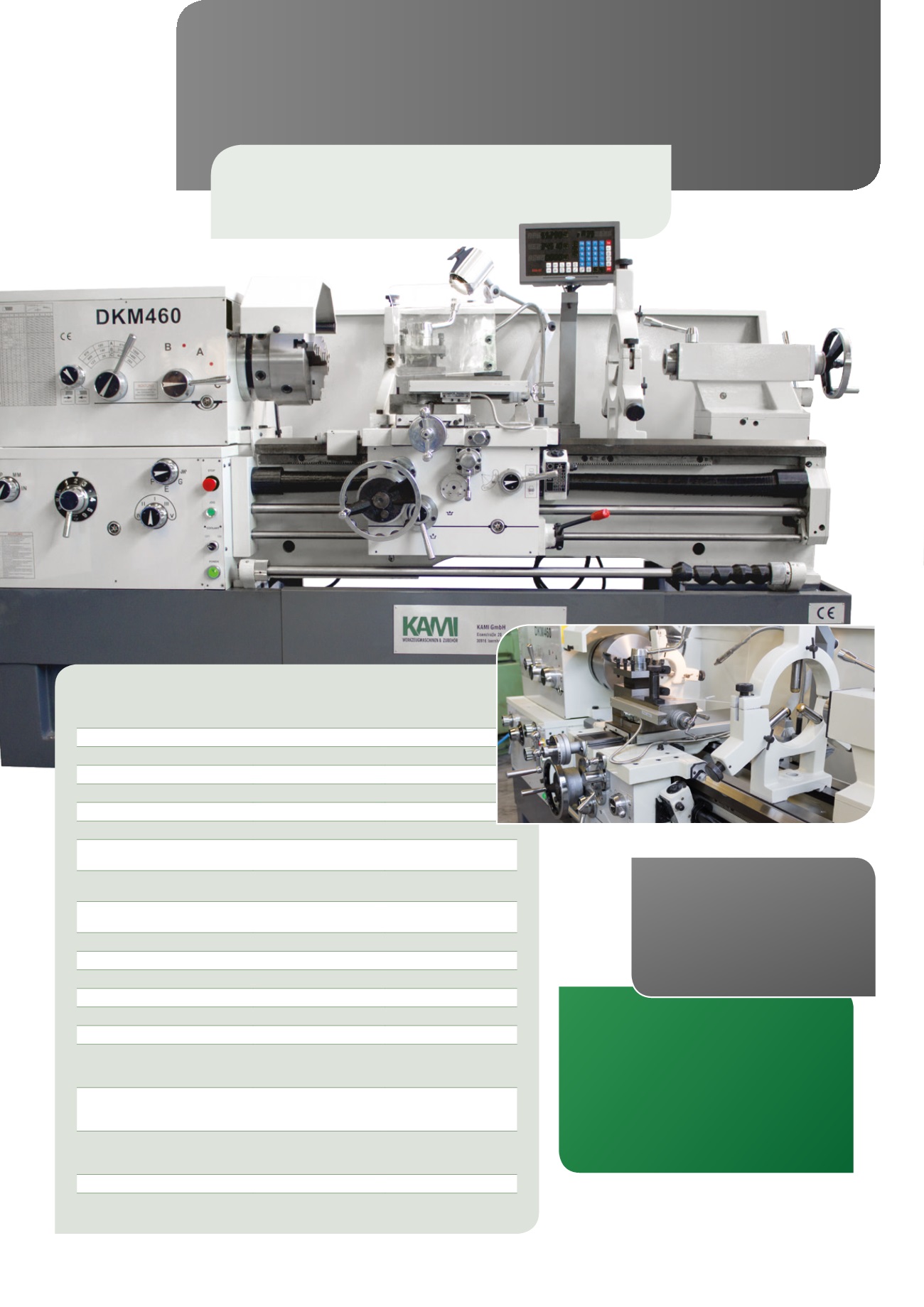

Center lathe with 80 mm spindle bore and a powerful 5.5 kW motor.
Heavy constructed and equipped with approved technology.
lathes DKM460/560
DKM 460
DKM 560
heigth of center
230 mm
280 mm
distance between center
1000-2000 mm
2000 mm
max. swing over bed
460 mm
560 mm
max. swing in the gap
696 mm
790 mm
max. swing over slider
290 mm
355 mm
diameter of spindlehole
80 mm
80 mm
spindlenose
Camlock D1 - 8/MK 6
DIN 55029 D1 - 8/MK 6
speed range
42 - 1800 U/min (12
Steps)
40 - 1600 U/min (12
Steps)
range longitudinal feeds
0,04 - 2,46 mm/U; 61
Steps
0,030 - 1,66 mm/U; 60
Steps
range cross feeds
0,03 - 1,23 mm/U; 61
Steps
0,02 - 1,21 mm/U; 60
Steps
metric thread
0,5 - 20 mm; 24 Steps
0,1 - 14 mm; 41 Steps
inch thread
1 5/8 - 72 GPZ; 61 Steps 2 - 112 GPZ; 60 Steps
quill diameter
70 mm
70 mm
quill stroke
130 mm
130 mm
quill konus
MK 5
MK 4
power of engine
5,5 kW
5,5 kW
distance between center 1000mm
Gewicht 2350 kg, Abmes-
sungen 2310x1000x1255
mm
distance between center 1500mm
Gewicht 2650 kg, Abmes-
sungen 2810x1000x1295
mm
distance between center 2000mm
Gewicht 2900 kg, Abmes-
sungen 3320x1000x1295
mm
weight
3380 kg
dimensions
3540 x 1143 x 1295 mm
Features
»
»
80 mm spindle bore
»
»
gears hardend and ground
»
»
manual guideway lubrication
»
»
adjustable main spindle bearing
»
»
gap
»
»
cooling device
»
»
3-axis-digital readout
Accessories
»
»
3-jaw chuck 250mm
»
»
4-jaw independent chuck 315 mm
»
»
steady and following rest
»
»
splash guard
