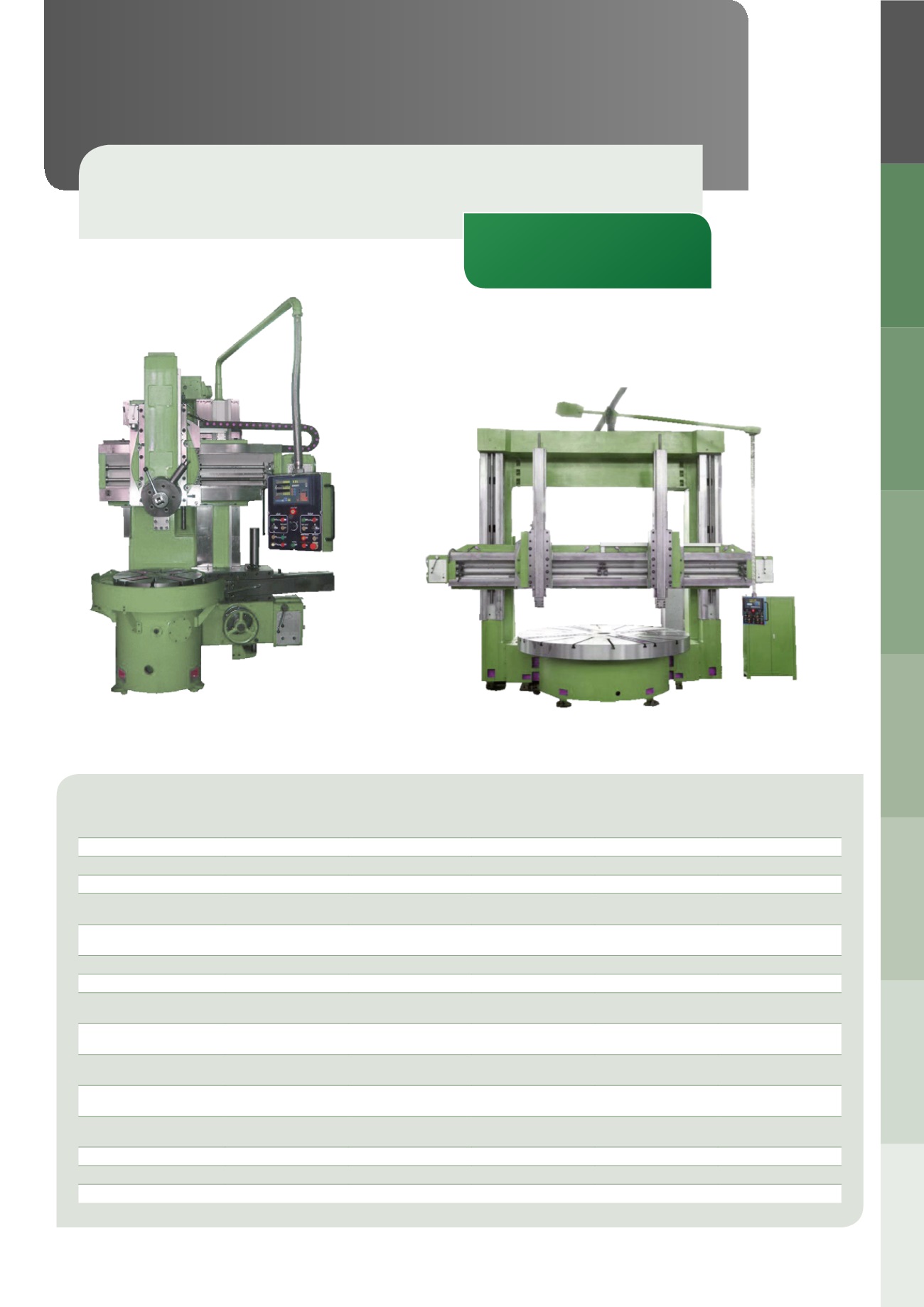

LATHES vertical lathe
Conventional vertical lathe with a robust construction. With this type of construction heavy turning
diameters can be provided for suitable prices.
DKM 1250.1 K DKM 1600.1 K DKM 2300.1.3 K DKM 2600.1.5 K DKM 3200.1.6 K
swing over bed max 1250 mm 1600 mm 2300 mm 2600 mm 2600 mm
max. working length 1000 mm 1000 mm 1350 mm 1500 mm 1600 mm
max. workpice weigth 3200 Kg 5000 Kg 8000 Kg 10000 Kg 10000 Kg
tablediameter 1000 mm 1400 mm 2000 mm 2300 mm 2830 mm
speeds 6.3 - 200 U/min (16
Steps)
5 - 160 U/min (16 Steps) 2.5 - 80 U/min (16
Steps)
1.2 - 40 U/min (16
Steps)
2 - 63 U/min (16 Steps)
feeds longitudinal/cross 0.8 - 86 mm/min
(12 Steps)
0.8 - 86 mm/min
(12 Steps)
0.8 - 86 mm/min (12
Steps)
0.8 - 86 mm/min (12
Steps)
0.8 - 86 mm/min (12
Steps)
rapid feed cross 1800 mm/min 1800 mm/min 1800 mm/min 1800 mm/min 1800 mm/min
rapid feed longitudinal 660 mm/min 660 mm/min 660 mm/min 660 mm/min 660 mm/min
upper support movement
Z-axis
650 mm 800 mm 800 mm 1000 mm 1000 mm
upper support movement
of X-axis
700 mm 915 mm 1575 mm 1600 mm 1800 mm
range of swivel Oberbal-
kensupport
+- 30 +- 30 +- 30 +- 30 +- 30
side support movement
Z-axis
900 mm 900 mm 1180 mm 1180 mm 1180 mm
side support movement
X-axis
500 mm 630 mm 630 mm 730 mm 730 mm
rated capacity 22 kW 30 kW 30 kW 37 kW 55 kW
weight 8500 kg 12100 kg 18000 kg 22000 kg 30000 kg
dimensions 2277x2445x3403 mm 2660x2740x3528 mm 3210x2850x3300 mm 3300x4000x3500 mm 4950x4100x3800 mm
All models as CNC version avai-
lable.
