FKM 538
FKM 546
table size
800x240 mm
800x240 mm
distance spindle nose - column
170-640 mm
160-610 mm
spindle speeds
115-1750 U/min
115-1750
spindle speeds horizontal
-
40-1300 U/min
drilling capacity in steel
35 mm
50 mm
movement longitudinal X
538 mm
460 mm
movement cross Y
220 mm
230 mm
movement in Z
338 mm
320 mm
tool mounts
ISO 40 / DIN 2080
ISO 40 / DIN 2080
quill stroke
120 mm
120 mm
size of t-slots
16 mm (T14)
16 mm (T14)
power of engine
1,5 kW 400 Volt
1,5 kW 400 Volt
weight
610 kg
1120 kg
dimensions
1140 x 1100 x 2060 mm 1320 x 1280 x 2200 mm

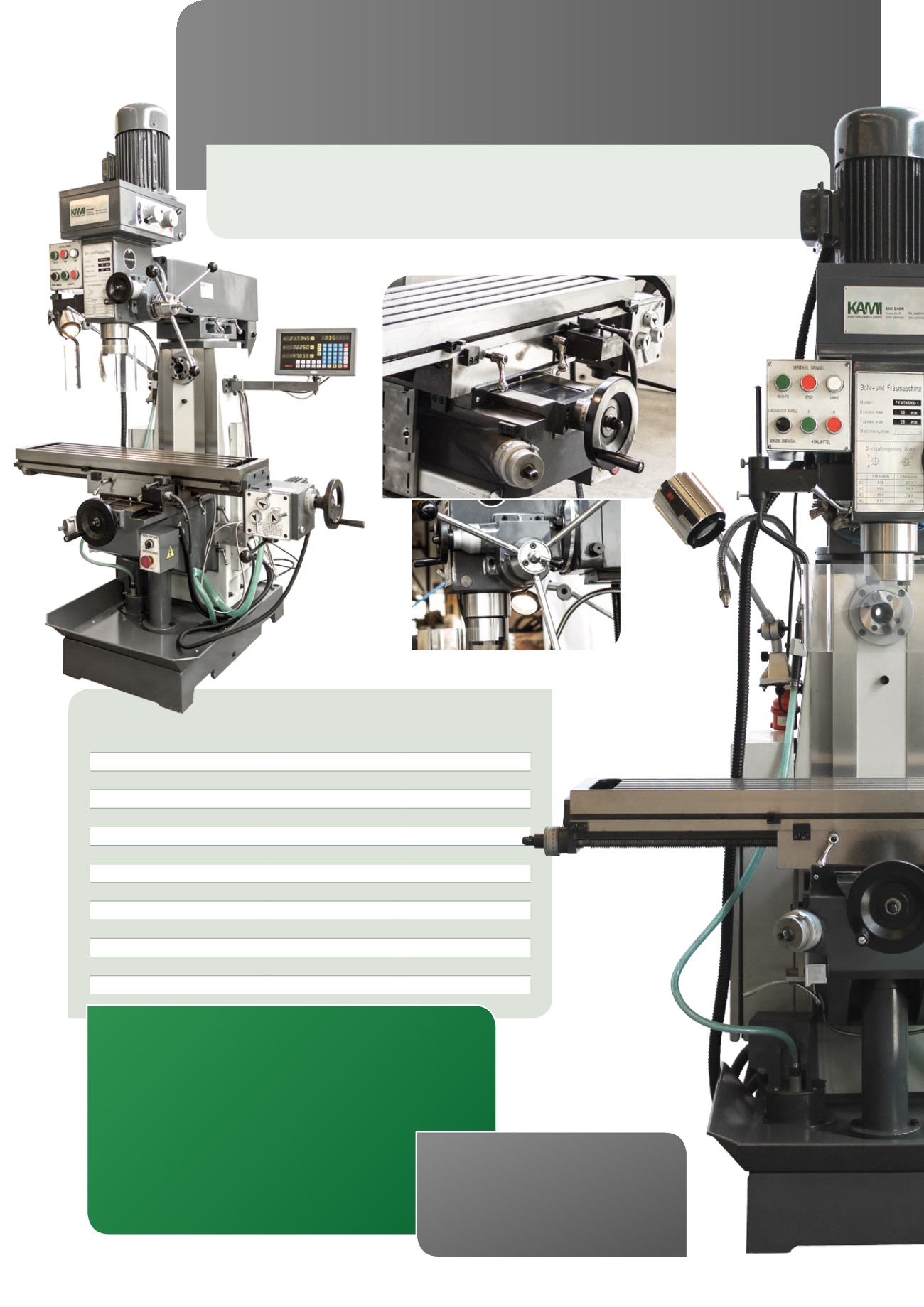

Multi-purpose milling machines with movable and pivotable arm for flexible machining of work-
pieces. Additionally the gear head is pivotable in the vertical axis by 90 °.
multi porpuse milling machine 538 / 546
Features
»
»
horizontal ISO40 spindle (nur FKM546)
»
»
gear drive for powerful spindle transmission without loss of torque
»
»
milling head horizontal +/-180° / vertikal 90° swivel-mounted
»
»
engageable manual fine feed
»
»
spindle with SK 40 mounted axially and radially
»
»
dovetail guideways adjustable by V-ledges
»
»
forward/backward motor rotation
»
»
gear feed for X-axis
»
»
cooling device
»
»
3-axis digital readout
Accessories
»
»
ISO 40 collet chuck set
»
»
ISO 40 drill chuck arbor
»
»
drill chuck 1-13mm
Abbildungen können abweichen.Technische Daten können ohne vorherige Ankündigung geändert werden. Keine Haftung für Irrtümer und Druckfehler.Alle Preise on request.
