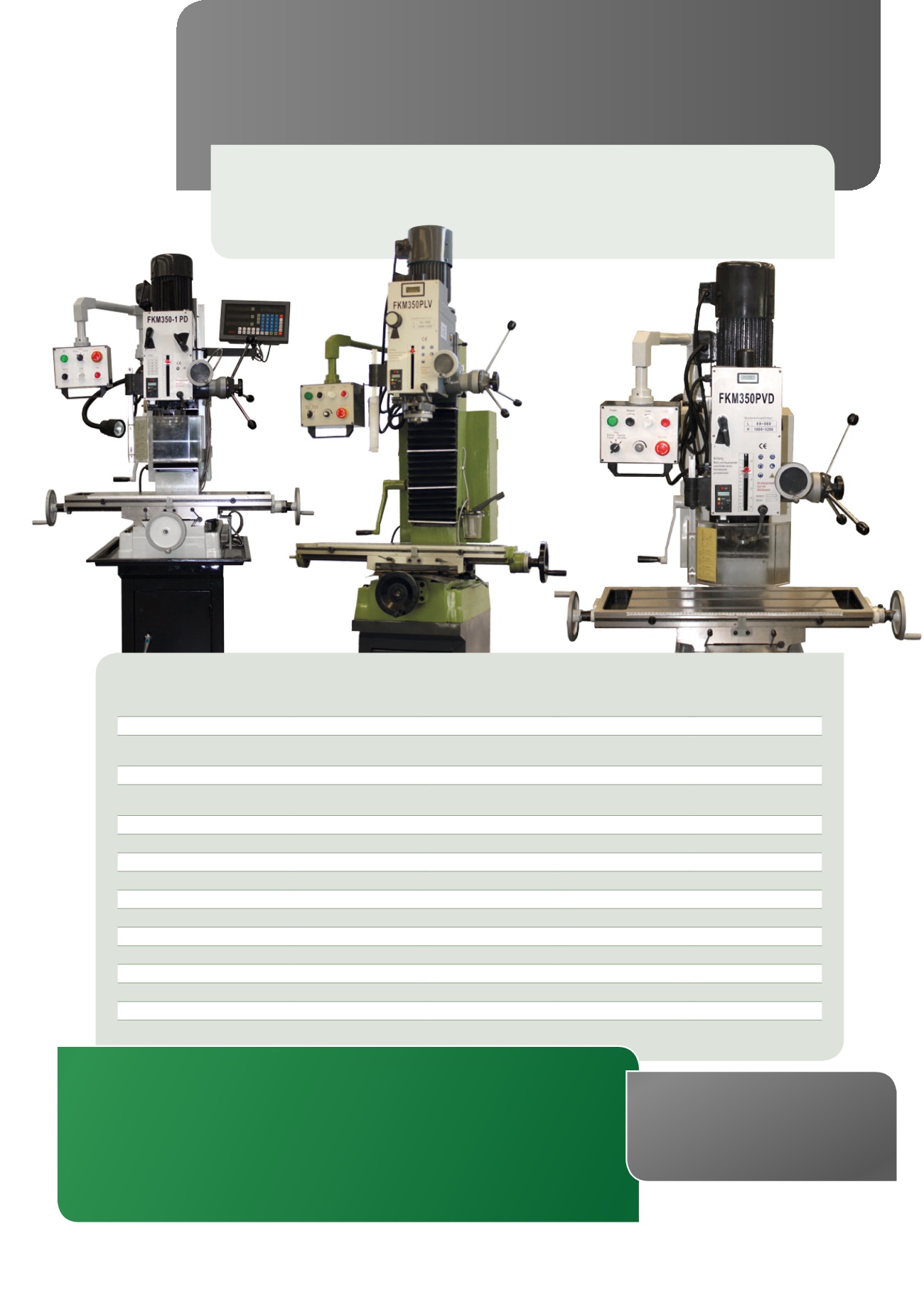

drilling and milling machine FKM 350
The drilling and milling machines of the 350 series persuade the customers by its solid construc-
tion, the various options and an extraordinary workmanship. On the basis of this series, we manu-
facture in Germany our own PC controlled CNC machines according to customer requirements.
FKM 350 PD
FKM 350 PL
FKM 350 PVD
FKM 350PLV
sizes of worktable
800 x 240 mm
800 x 240 mm
800 x 240 mm
800 x 240 mm
working area
730 x 210 mm
730 x 210 mm
730 x 210 mm
730 x 210 mm
distance spindle nose - work
table
max 445 mm
max 445 mm
max 445 mm
max 445 mm
distance spindle nose - column
290 mm
290 mm
290 mm
290 mm
spindle speeds
75-3200 U/min
75 - 3200 U/min
80 - 3200 U/min stepless
in 2 Schaltsteps
65-3200 U/min stepless in
2 Schaltsteps
1.switching stage
-
-
80 - 980 /min
80 - 980 /min
2.switching stage
-
-
1000 - 3200 U/min
1000 - 3200 U/min
tool mounts
ISO 30 / SK 30
ISO 30 / SK 30
ISO 30 / SK 30
ISO 40 / SK 40
drilling capacity in steel
40 mm
40 mm
40 mm
40 mm
movement longitudinal X
500 mm
500 mm
520 mm
540 mm
movement cross Y
230 mm
230 mm
205 mm
198 mm
height adjustment milling head
350 mm
350 mm
395 mm
395 mm
quill stroke
130 mm
130 mm
130 mm
130 mm
size of t-slots
14 mm (M12)
14 mm (M12)
14 mm (M12)
14 mm (M12)
power of engine
1,1 kW 400 Volt
1,1 kW 400 Volt
2,2 kW 400 Volt
1,5 kW 400 Volt
weight
320 kg
320 kg
320 kg
320 kg
dimensions
1020 x 860 x 1150 mm 1020 x 860 x 1150 mm 1020 x 860 x 1150 mm 1020 x 860 x 1150 mm
Features
»
»
digital depth measuring device
»
»
adjustable depth indicator
»
»
adjustable guide ways by V-ledge
»
»
high smooth running by hardened and ground gear in
in Oil running
»
»
roller bearings for concentricity < 0,015 mm
»
»
forward/backward motor rotation
»
»
prism guideways in all axis
»
»
gear head 90° swivel-mounted
»
»
chip protection with safety circuit
»
»
digital speed indicator (nur FKM350PVD/PLV)
»
»
leadscrews in all axis (nur FKM350PL/PLV)
»
»
manual central lubrication (nur FKM350PL/PLV)
»
»
electronic adjustable speed with 2 steps for optimal
power transmission (nur FKM350PVD/PLV)
Accessories
»
»
Cover for Guideway for Y and Z-axis
»
»
drill chuck arbor
