Cycles lathes with 4 position tool changer and strong servo motors.

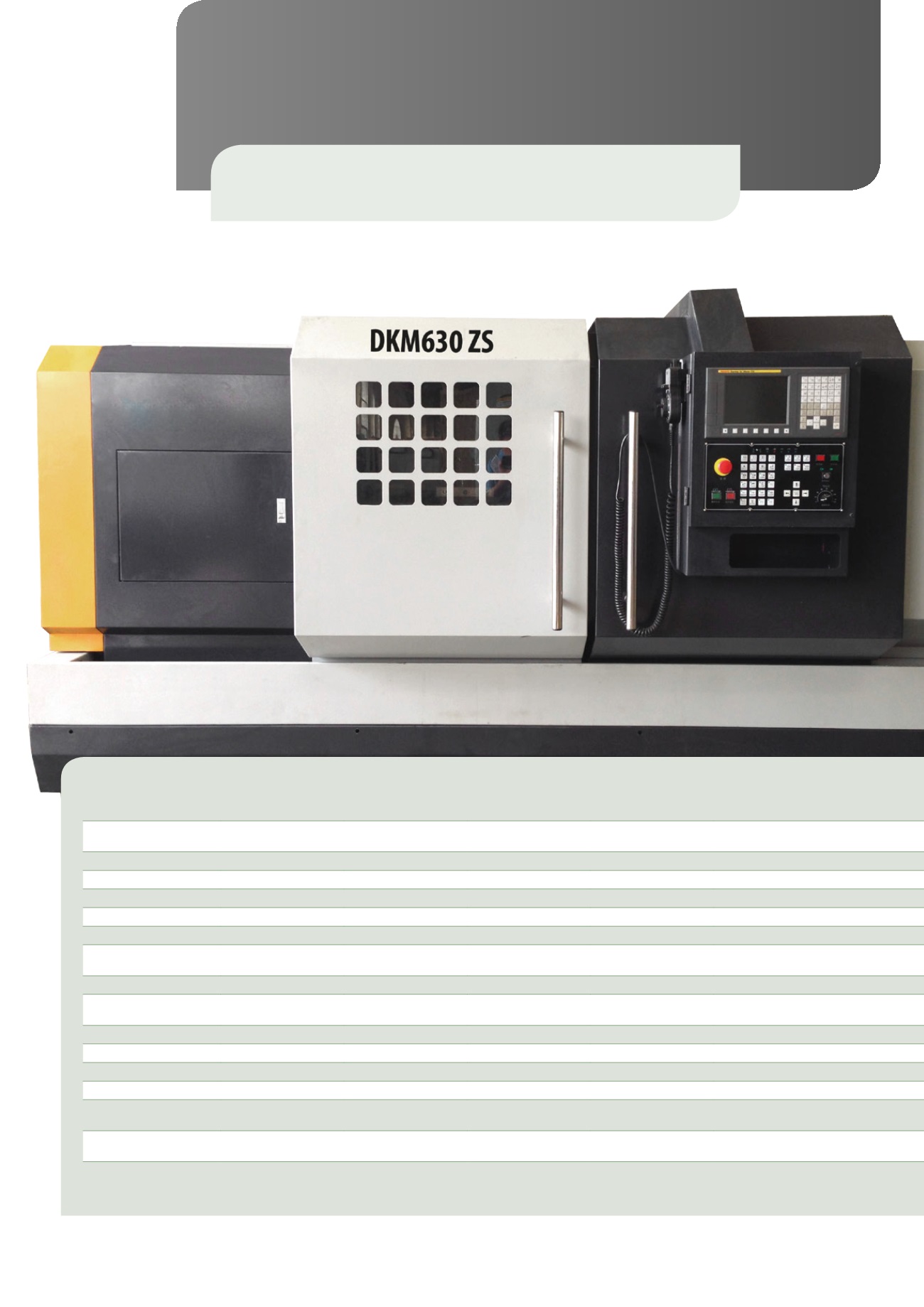

cycle lathe DKM Z(yklon) series
DKM 360 Z DKM 500 Z DKM 630 Z DKM630 ZS DKM 800 ZS
heigth of center 180 mm 250 mm 315 mm 315 mm 400 mm
distance between center 750/1000 mm 750/1000/1500/2000
mm
1000/1500/2000/3000
mm
1000/1500/3000 mm 1000 mm
max. swing over bed 360 mm 500 mm 630 mm 630 mm 800 mm
max. swing over slider 180 mm 280 mm 320 mm 360 mm 500 mm
diameter of spindlehole 50 mm 80 mm 100 mm 105 mm 105 mm
spindlenose D1-6 D1-8 C11 A1-11 A1-11
rapid feed X/Z axis 4000/5000 mm/min 5000/10000 mm/min 4000/8000 mm/min 6000/7000 mm/min 6000/7000 mm/min
speed range 20 - 2500 U/min 2
Getriebesteps
7 - 2200 U/min 3 Getrie-
besteps
40 - 1000 U/min 4
Getriebesteps
20 - 1120 U/min 3
Getriebesteps
20 - 1120 U/min 3 Getriebesteps
movement of X-axis 205 mm 280 mm 320 mm 370 mm 390 mm
movement Z-axis 620/870 mm 680/930/143/1930 mm 785/1235/1835/2735
mm
760 mm 760 mm
quill diameter 63 mm 75 mm 100 mm 100 mm 100 mm
quill stroke 130 mm 150 mm 240 mm 250 mm 250 mm
quill konus Morse Konus 4 Morse Konus 5 Morse Konus 6 Morse Konus 5 Morse Konus 5
power of engine 5.5 kW 7.5 kW 11 kW 11 kW 11 kW
bed width
weight 1600/1650 kg 2550/2600/2700/2800
kg
4700/4800/5300/5600
kg
4800/5100/6100 kg 5000 kg
dimensions 2300/2550x1480x1520
mm
2580/2830/3300/3830x1750x1620
mm
3455/4010/4510/5410x2000x1800
mm
3500/4000/6100x1580x1850 mm 3500x1680x2000 mm
