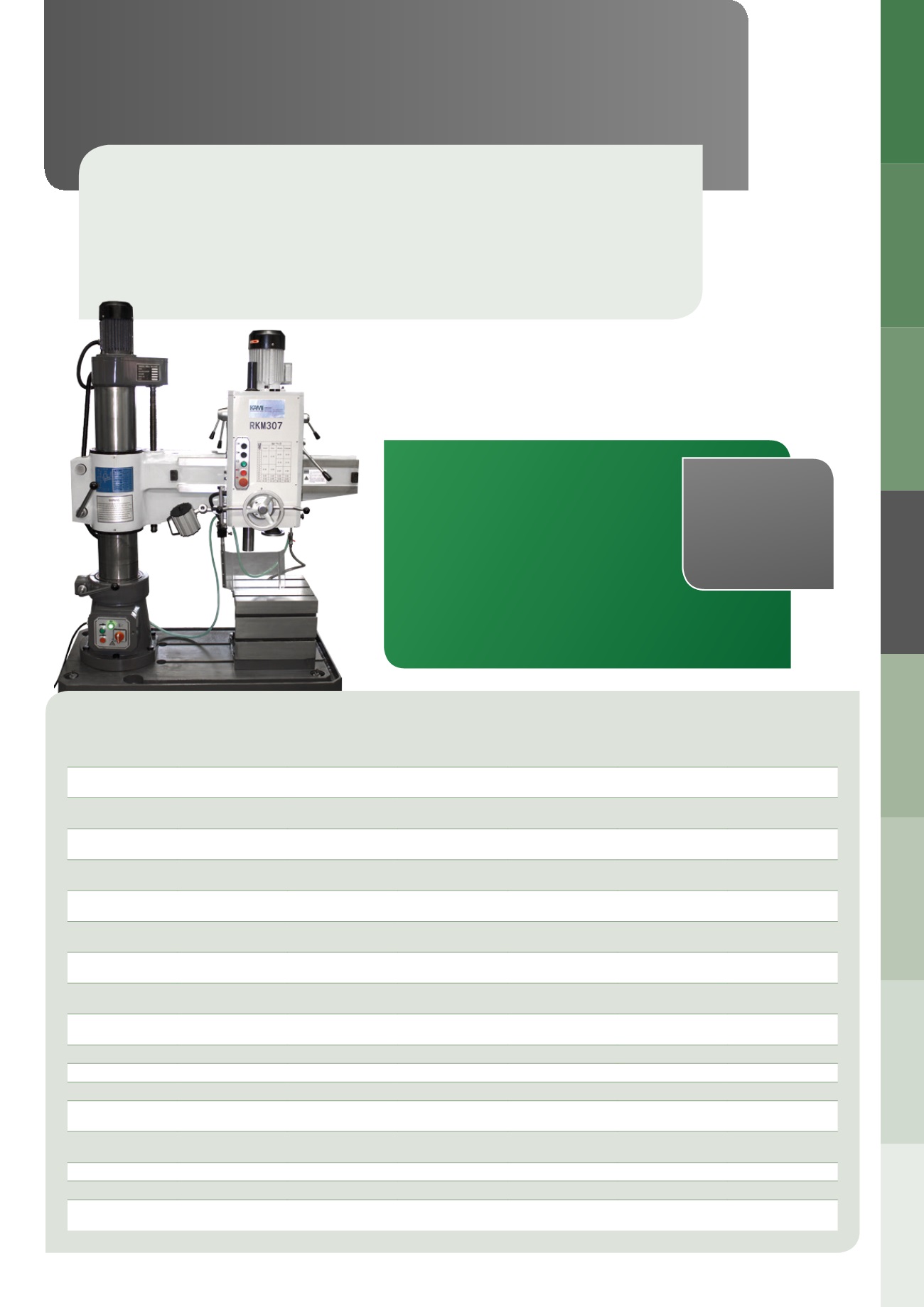

radial arm drill presses RKM series
Powerful radial drilling machine for industrial use. The arm is equipped with hardened and ground
guideways, wherein the height adjustment is via a lift motor. It has a hydraulically switched feed
and spindle gear, as well as a hydraulic and mechanical clamping device. The robust construction
made ​​of high quality cast iron and the oil bath gear of hardened and precision
ground gears, the machine runs quietly and vibration.
RKM 307
RKM 5016
RKM 5020
RKM 6320
RKM 8025
RKM 10025
drilling capacity in
steel
32 mm
50mm
50mm
63mm
80mm
100 mm
thread cutting in
Steel until
M 30
M 46
M 46
M 56
M 56
M 70
thread cutting in
cast iron until
M 36
M 52
M 52
M 60
M 64
M 80
spindle speeds
75 - 1220 U/min
25 - 2000 U/min
(500Nm)
25 - 2000 U/min
(500Nm)
20 - 1600 U/min; 22
Steps (980Nm)
16 - 1250 U/min
(1568Nm)
8 - 1000 U/min
distance spindle
nose - column
250 - 700 mm 350 - 1600 mm 350 - 1600 mm 450 - 2000 mm 500 - 2500 mm 570 - 3150 mm
distance spindle
nose - base
220 - 520 mm 350 - 1250mm 350 - 1250mm 400 - 1600mm 550 - 2000mm 750 - 2500 mm
vertical travel of the
armes
550 mm
620 mm
600 mm
620 mm
1000 mm
1000 mm
horizontal travel
drilling head
550 mm
1250 mm
1600 mm
1600 mm
2000 mm
2580 mm
dimension cube
table
1370x700x160 mm 1700x980x200 mm 2000x1000x200 mm 2000x1000x500 mm 3530x1400x300 mm 2750x1220x300 mm
dimension working
table
400x400x350 mm 500x750x500 mm 500x750x500 mm 800x630x500 mm 100x800x560 mm 1000x800x560 mm
quill stroke
240 mm
315mm
315mm
405 mm
450 mm
500 mm
tool mounts
Morse Konus 4
Morse Konus 5
Morse Konus 5
MK 5
Morse Konus 6
MK 6
swivel arm
360
360
360
360
360
360
distance spindle
nose - column
700 mm
1600mm
2000mm
2000mm
2500mm
2500mm
automatic feeds
0.10 - 0.25 mm/U 0.04 - 3.2 U/min (16
steps)
0.04 - 3.2 U/min (16
steps)
0.04 - 3.2 U/min; 16
Steps
0.04 - 3.2 U/min (16
steps)
0.06 - 3.2 mm/U
power of engine
1,5 kW/400 Volt
3,5 kW/400 Volt
5,5 kW/400 Volt
5,5 kW/400 Volt
7,5 kW/400 Volt
15 kW
weight
1425 kg
3500 kg
3500 kg
7000 kg
11000 kg
20000 kg
dimensions
1407x720x1885 mm 2490 x 1050 x 2835
mm
2490 x 1050 x 2835
mm
3080 x 1250 x3205
mm
3730 x 1400 x 3795
mm
4780x1630x4720
mm
Features
»
»
guideways hardend and ground
»
»
height adjustment motorized
»
»
hardened and ground gear
»
»
ground Base
»
»
thick-walled, ground Column
»
»
height adjustment of the radial arm with strokemotor
»
»
autofeed for quill
»
»
hydraulically operated feeding- and spindledrive(nicht for RKM 307)
»
»
hydraulic and mechanical Brakes (nicht for RKM 307)
»
»
radial armarm and drilling head with hydraulic Brake (nicht for RKM 307)
Accesso-
ries
»
»
cube table
