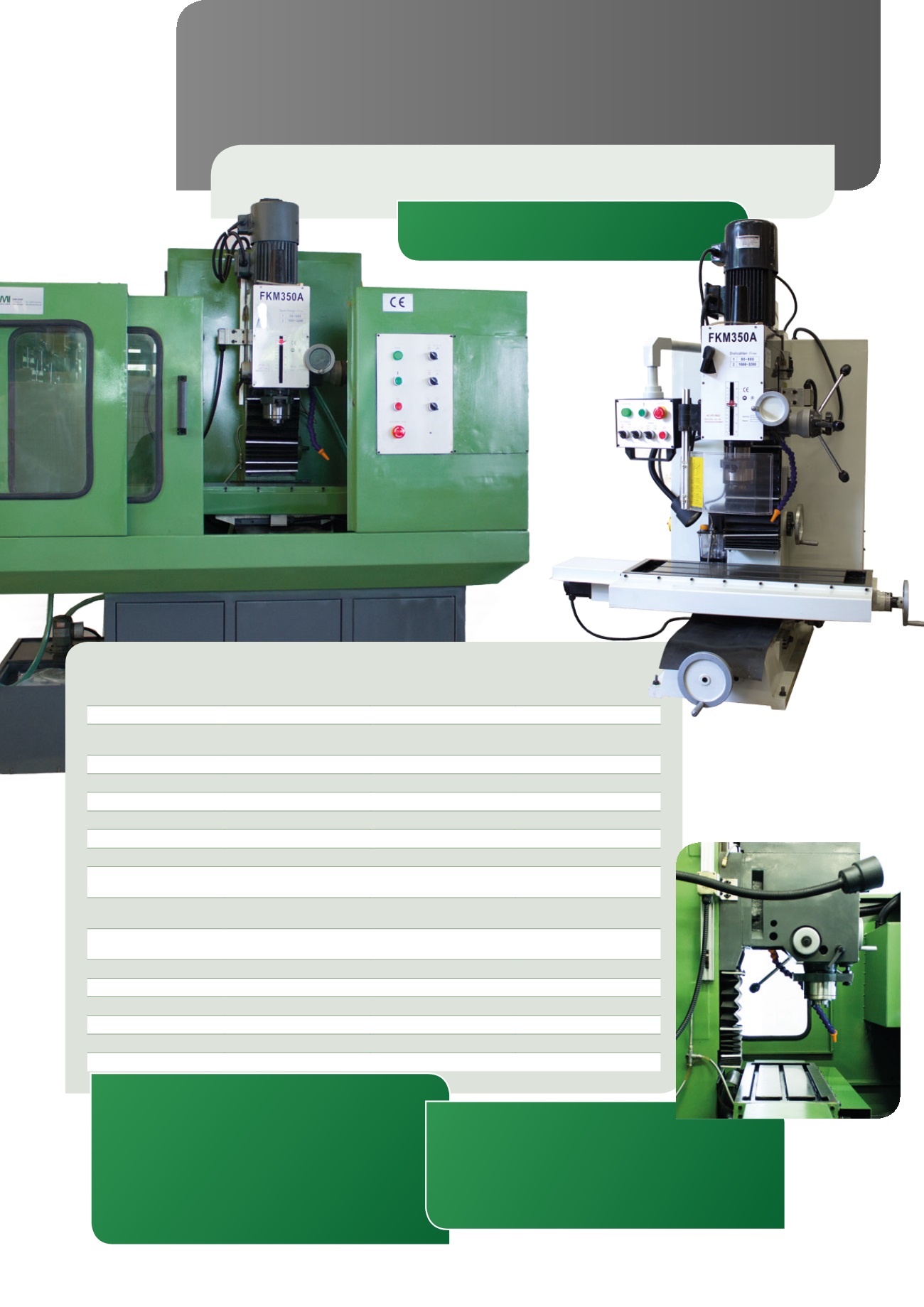

CNC-drilling and milling machine
PC-controlled drilling and milling machines with ISO 30 spindle taper.
FKM 350 PL CNC
FKM 350 CNC
FKM 350 A CNC
table size
730 x 210 mm
800x240 mm
800x240 mm
spindle speeds
75 - 3200 U/min
80-3000 U/min
80-3000 U/min
drilling capacity in cast
iron
40 mm
40 mm
40 mm
drilling capacity in steel
32 mm
32 mm
32 mm
movement longitudinal X
500 mm
500 mm
500 mm
movement cross Y
230 mm
170 mm
285 mm
movement in Z
350 mm
350 mm
400 mm
tool mounts
ISO 30 / SK 30
ISO 30
ISO 30
quill stroke
130 mm
120 mm
120 mm
motors
X,Y,Z jeweils 12Nm/8A
;86mm Flanschma
X,Y,Z jeweils 12Nm/8A
;86mm Flanschma
X,Y,Z jeweils 12Nm/8A
;86mm Flanschma
driver
X,Y,Z jeweils 80V/7,8A
Mircroschritt
X,Y,Z jeweils 80V/7,8A
Mircroschritt
X,Y,Z jeweils 80V/7,8A
Mircroschritt
speed
Eilgang X,Y,Z 45 mm/s; X,Y
30 mm/s
Eilgang X,Y,Z 45 mm/s; X,Y
30 mm/s
Eilgang X,Y,Z 45 mm/s; X,Y
30 mm/s
axis resulution
320 Schritte pro mm
320 Schritte pro mm
320 Schritte pro mm
repeat accuracy
ca.+- 0,02 mm auf 300 mm ca.+- 0,02 mm auf 300 mm ca.+- 0,02 mm auf 300 mm
feed force
X,Y ca.4000-5000N
X,Y ca.4000-5000N
X,Y ca.4000-5000N
power of engine
1,1 kW
1,1 kW 400 Volt
1,1 kW 400 Volt
weight
370 kg
500 kg
750 kg
dimensions
1020 x 860 x 1150 mm 1125x1100x1760 mm 2000x1300x2200 (in mm)
Features
»
»
step motors for 3 axis
»
»
control cabinet with 3 driver cards
»
»
alternate control systems e.g. mach3 upon inquiry
»
»
cooling device
»
»
central lubrication
»
»
full cabin (nur FKM350A)
Optionale Ausstattung
»
»
HF-spindle for speeds up to 24000 RPM
»
»
electronical Handle wheel (CNC Graf)
»
»
tool length sensor
Positioning accuracy is 0.02 mm / 300 mm
