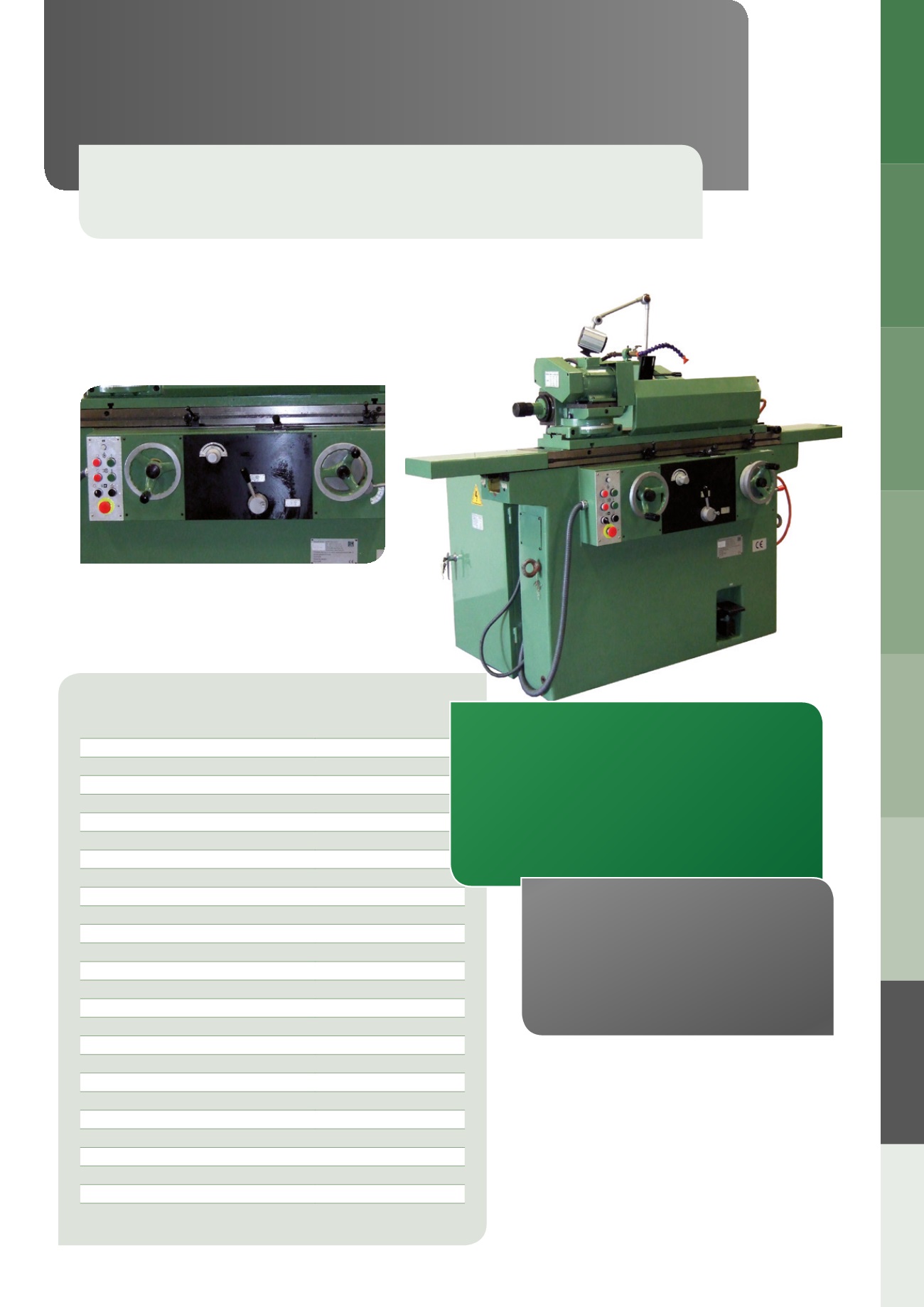

Cylindrical Grinding Machine
Cylindrical grinder with heavy cast iron construction for vibration-free
grinding with a wide speed range.
GKM 1412/500 R
heigth of center
100 mm
distance between center
520 mm
Schleiflänge max.
500 mm
ginding diameter
125 mm
Werkstück weight max.
10 kg
Innenschleifdiameter
10 - 40 mm
Innenschleiftiefe
50 mm
table feed, stepless
0,05 - 4,5 m/min
table swivel-mounted right + left
9 °
spindlestock speed range
300 - 1040 min-1 (6 Steps)
range of swivel
R + L:
konus of spindle
MK 4
speed Schleifspindel
1800 min-1
speed Innenschleifspindel
17000 min-1
range of swivel Schleifspindelstock
feed for each revolve handwheel X-axis
0,5 mm
feed je Skalenteilung X-axis
0,0025 mm
konus of tailstock quill
MK 2
accuracy in Futter Außen
0,005 mm
accuracy in Futter Innen
0,005 mm
accuracy zwischen den Tip
0,003 mm / 0,00012“
Rauhtiefe Außen
ra < = 0,32
Rauhtiefe Innen
ra < = 0,64
rated capacity of the machine
3,475 kW
size of grinding discs
300 x 40 x 127 mm
weight
2100 kg
dimensions
2240x1160x1300 mm
Features
»
»
preciser adjustable spindlekopf
»
»
stable support for the best possible machining results
»
»
stepless, adjustable hydraulic longitudinal feed
»
»
manual and hydraulic longitudinal movement of the
grinding spindle head
»
»
accuracy according DIN for circular grinders
»
»
cooling device
Accessories
»
»
3-B-Futter Ø 125 mm
»
»
grinding disc dresser
»
»
balancing stand
»
»
live center
»
»
inside grinding device
