WSL- Serie
rapid feed (IDLE )
0-15 m/min
positioning accuracy
repeatability
Operating pressure max.
360 - 380 MPA
High-pressure pump dimensions
1800 X 1300 X 1500 mm
High pressure System power of engine
37 kW
flow
3.7 l/min
conversion rate Oil and Water proportion
1/20
Oiltank capacity
180 L
ambient temperature for Oil / air-cooler 10 - 35 ℃
required air pressure
0.6 MPA
ambient temperature for Oil / Water coolant
10 - 45
water supply pressure
≥ 0.4 MPA
Water pressure , with Booster pump
wastewater connection
High-pressure connections
3/ 8“ und 1 /4“ HP Rohr
air Supply
Compressed air connectionfor tube
8MM
power connector according costumer wanted

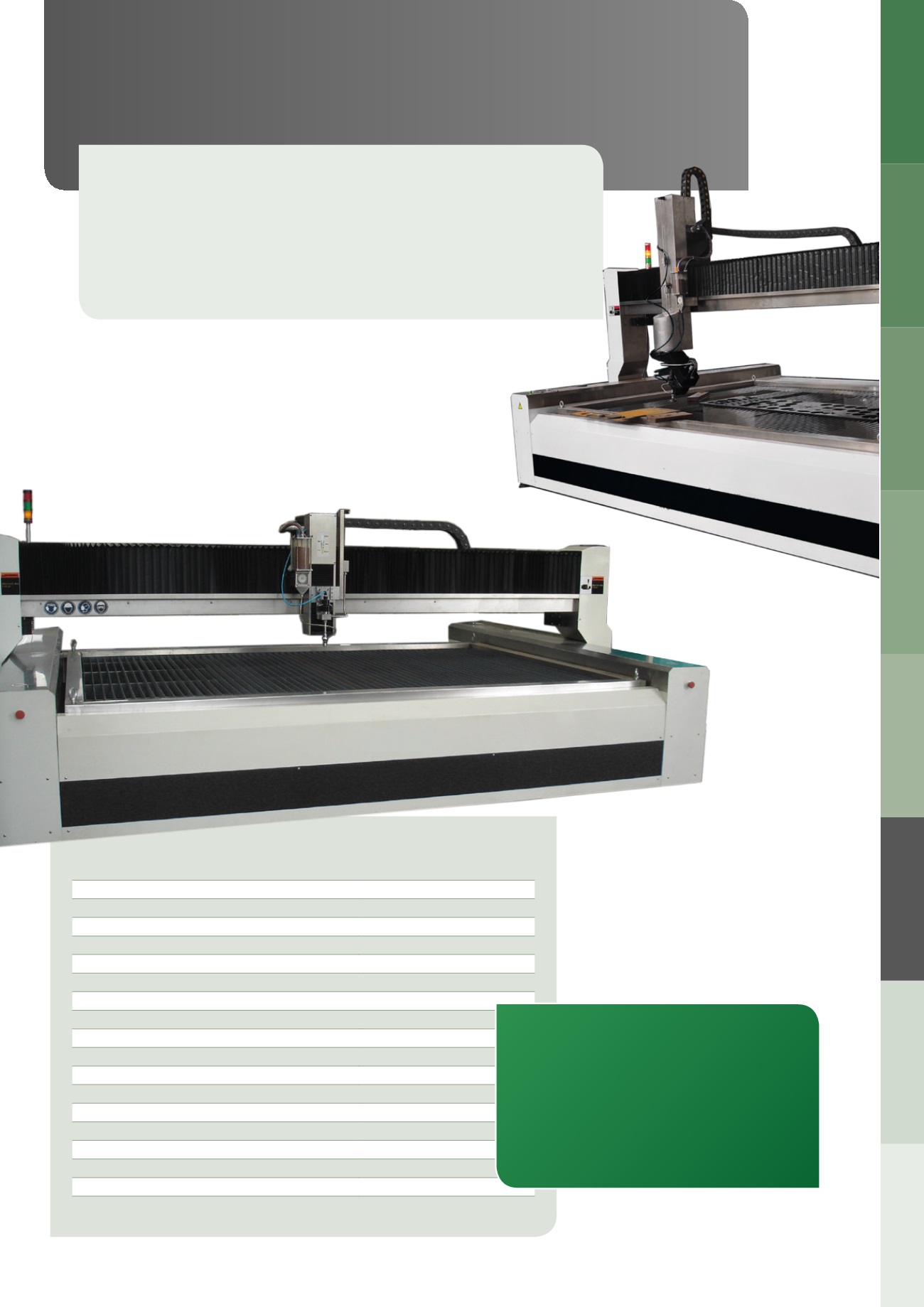

Water jet cutting machine WSL - series
NC-controlled 3/4/5 axis waterjet cutting machines with CNC cutting table HP
system CAD / CAM software system cutting head, HP water valve and sand-con-
trol system in one unit. The rapid traverse reaches a speed of 8000 mm / min
with a positioning accuracy of 0.1 mm and a repeatability of 0.05 mm. Different
table sizes and traverse (X / Y) are produced on customer request. The Z - axis
travel is 150 mm optional 180 mm.
Features
»
»
integrated HP cutting head
»
»
configurable high pressure pump systems
»
»
Abba oof the HiWin leadscrews
»
»
NAIKY Controller / Mitsubishi Servomotoren
»
»
special software with G-code Funktion
»
»
automatic position monitoring
»
»
automatic lubrication system
