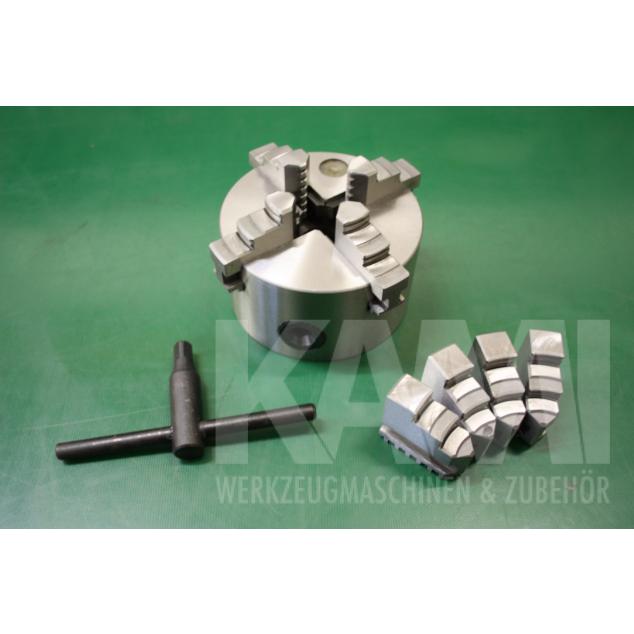

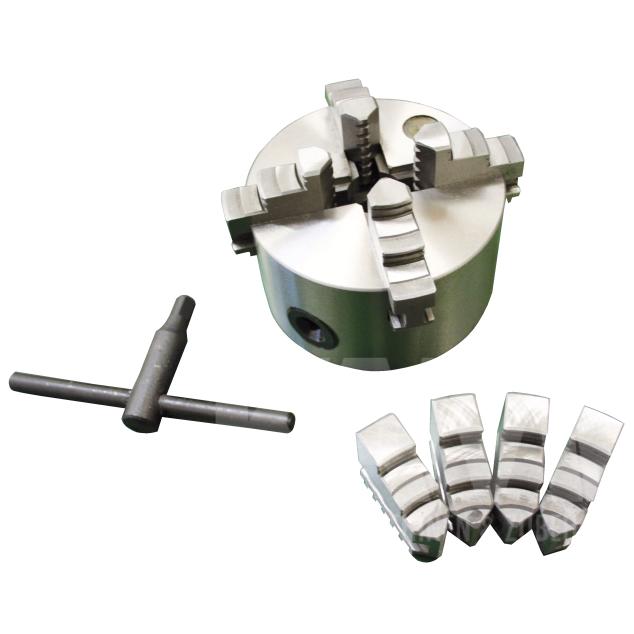

Drehfutter 4-B Drehfutter D=100, DIN6350, Guss
Abbildung ähnlich
lathe chuck 4-B lathe chuck D=100, DIN6350, cast iron
cylindricaltaper according DIN 6350 , one-piece jaws These lathe chucks ensure uniform clamping force due to centrically exciting jaws and high concentricity. include each 1 Set turn- and Drill jaws and 1 Set soft one-piece jaws, clamping wrench, bolts.
153,80 €*
Availability:
Auf Anfrage
* Preis zzgl. MwSt. und Versand
4-B Drehfutter D=100, DIN6350, Guss
153,80 €*

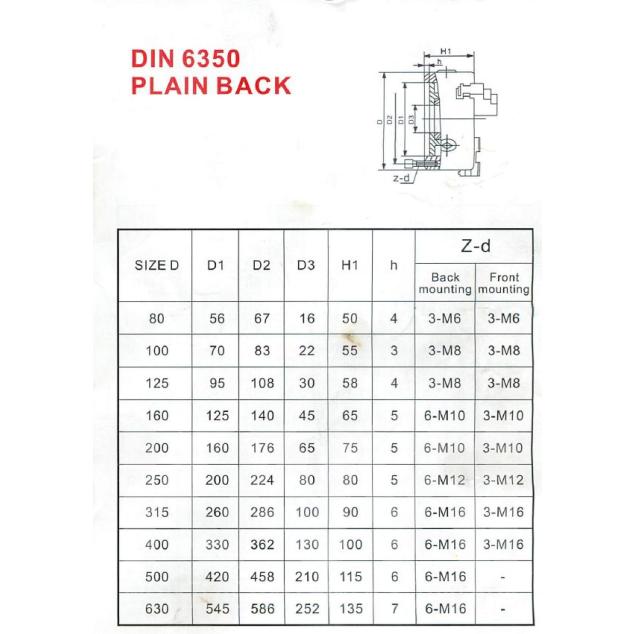

specifications
- diameter 100 mm
- fixing 3 St. M 8
- pitch circle 83 mm
- centering margin 70 mm
- opening dimensions 22 mm
- width over all 74,5 mm
- chuck body 55 mm
- max. speed 3500 U/min
- weight 9,00 kg
